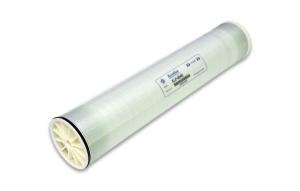

Long Service Life Wider Spacer Thickness Extremely Low Pressure Energy Saving XLP RO Membrane Elementss

Name: Long Service Life Wider Spacer Thickness Extremely Low Pressure Energy Saving XLP RO Membrane Elementss
Brand: KEENSEN, OEM
Price: 1 USD

Wholesale Long Service Life Wider Spacer Thickness Extremely Low Pressure Energy Saving XLP RO Membrane Elementss from china suppliers

Brand Name : KEENSEN, OEM

Model Number : XLP-4040， XLP-8040, XLP-4040HF, XLP-8040HF

Certification : ISO9001. NSF58, NSF61, HALAL

Place of Origin : CHANGSHA, CHINA

MOQ : 108

Payment Terms : L/C, T/T

Supply Ability : 220000 pieces per year

Delivery Time : 3-15 work days

Packaging Details : CARTON + PALLET

Use : Drinking Water Purification, Tap Water Treatment

Production Capacity : 18500 pcs/Month

Membrane Life : 3 years

Salt Rejection Rate : >99%

Operating pressure : 70-100 PSI

Size : 8.0/4.0 inches x 40 inches

Ph Range : 2-11

Material : Polyamide

Cleaning Ph Range : 2-12

Warranty : 3 Year

Suitable Raw Water : Below 1000PPM

Permeate Flow Rate : 2600-12500 GPD

Contact Now

Long Service Life Wider Spacer Thickness Extremely Low Pressure Energy Saving XLP RO Membrane Elementss

Applications

Groundwater, tap water treatment etc.
Supply system for dairy and beverage production, municipal drinking water, agricultural water, 2nd pass RO feed water etc.
Feed TDS below 1000mg/L.

Benefits

High Permeability
Extremely Low Operating Pressure
Cost-effective
Long Service Life
Energy Saving

1. 8040 Elements

1.1 Specifications

Model

Active Area

ft²(m²)

Feed Spacer Thickness(mil)

Permeate Flow Rate GPD(m³/D)

Stabilized Salt Rejection (%)

XLP-8040

440(40.9)

11000(41.6)

99.20

XLP-8040HF

440(40.9)

13000(49.2)

99.00

1.2 Standard Test Conditions

Solution

Temperature

(℃)

Operating Pressure

psi(MPa)

Recovery

(%)

500mg/L NaCl

7.5-8.0

100(0.69)

Individual flow rate may vary±15%

2. 4040 Elements

2.1 Specifications

Model

Active Area

ft²(m²)

Feed Spacer Thickness(mil)

Permeate Flow Rate GPD(m³/D)

Stabilized Salt Rejection (%)

XLP-4040

90(8.4)

2600(9.8)

99.20

XLP-4040HF

100(9.3)

3000(11.4)

99.00

2.2 Standard Test Conditions

Solution

Temperature

(℃)

Operating Pressure

psi(MPa)

Recovery

(%)

500mg/L NaCl

7.5-8.0

100(0.69)

Individual flow rate may vary±15%

3. Element Dimensions and Operating Limits

Model	Length		Diameter		Permeate Tube inner Diameter		Permeate Tube Extension Length
Model	inch	mm	inch	mm	inch	mm	inch	mm
8040	40	1016	7.9	201	1.12	28.5	/	/
4040	40	1016	3.9	99	0.75	19.1	1.04	26.5

Maximum Operating Pressure	600psi(4.14MPa)
Operating Temperature Range	0-45℃
Maximum Feed Silt Density Index (SDI₁₅)	5.0
Free Chlorine Tolerance	0.1mg/L
pH Range,Continuous Operation	3-10
pH Range,Short-Term Cleaning	1-13
Maximum Element Pressure Drop	15psi(0.1MPa)

All pictures for reference only.Please contact KeenSen for further advice.
